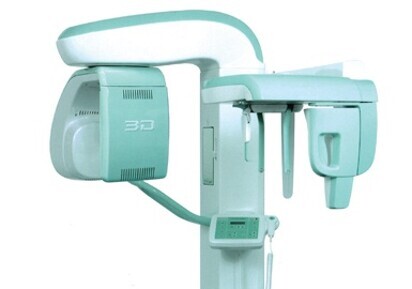

Rotograph Evo 3D

Villa Sistemi Medicali introduces its new Rotograph Evo 3D, a dental imaging system with three-in-one functionality — panoramic, cephalometric and 3-D. This new machine is based on the highly regarded mechanical platform of the Rotograph Evo, now adapted mechanically and electronically to operate with the latest cone-beam technology, allowing 3-D reconstruction of the jaws.

The core of the Rotograph Evo 3D is the flat panel detector (FPD) using amorphous silicon technology associated with cesium iodide (Csl) scintillator.

Thanks to its ability to work in either panoramic or 3-D modality, pan images are acquired directly and not reconstructed from a volume, thus having the same layout usually visible on traditional pan units.

Because of the unit’s 3-D field of view of 8.5 x 8.5 cm, the entire dental status of the patient is commonly visible at a glance, without the need to make different exposures to obtain it.

The result is a complete diagnostic tool, featuring the most advanced technology, yet one that is as easy to use as a normal dental panoramic system.

To give to users the maximum flexibility and grant the safeguard of their investment, the Rotograph Evo 3D can be integrated with a digital cephalometric arm or upgraded at a later time in case of need.
